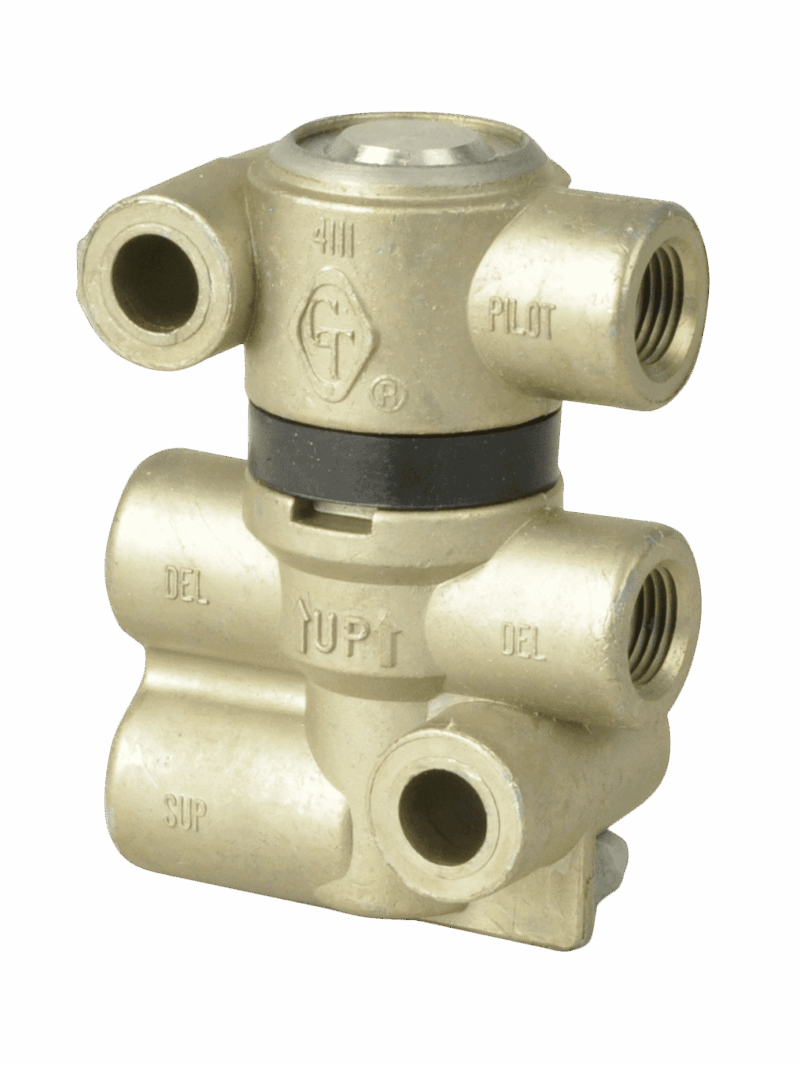

Rapid Dump Valve, PTF Thread Type, sku 4111

Rapid Dump Valve, PTF Thread Type

$37.99

Rapid Dump Valve with PTF Thread Type and Port Size. 1/8″ PTF Port Size. Made of die-cast zinc. Rated PSI 90 to 120 PSI and 6.4 to 8.5 bar.

Description
Additional information

Description

Norgren Rapid Dump Valve

The Norgren GT Development Rapid Dump Valve is a pilot-operated, normally open, three-way valve with two delivery ports. It is intended to be chassismounted on heavy duty, on-highway vehicles with airride suspensions. Its function is to remotely deflate the air ride suspension’s air bags.

Operation

This valve can also be used to open and close lift and tail gates. Typical supply pressure is equal to bag pressure (5 –60 PSIG) when the Valve is not actuated and raises the system pressure (90-120 PSIG) when the Valve is actuated. Typical pilot pressure is 90- 120 PSIG.
