Combination Seat Valve Electric-Pneumatic

$32.95

Norgren brand combination seat valve electric – pneumatic integrated driver switch.

Ships Free

SKU: 3000 Categories: ,

Description

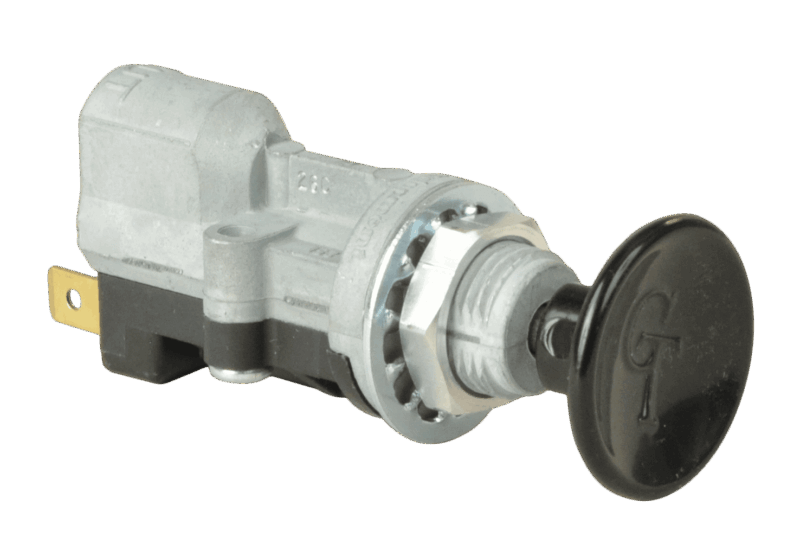

Combination Seat Valve Electric/Pneumatic

This Combination Seat Valve Electric-Pneumatic controls the drivers air-seat with both electric and pneumatic control. This is one control valve among several other controls.

There are paddle seat controls (air only), paddle seat control, removable knob seat control 134 series, double end ported seat valve, seat rocker valves series 3020 & 3277. Call the office for all the details on Norgren seat controls.

Combination electric and pneumatic seat valve. Integrated electrical switch for pneumatic and electric control of air seats Seat valve, combo, Black, GT logo knob.

• Removable knob
• Push-To-Connect fittings (PTC)

Technical Data

  • 1/4″ tube O/D.
  • Operating pressure: 0 to 200 psi (0 to 13 bar)

Actuation:

  • Push: Closes electrical switch. Approved for use with RDH Enterprises # 64-00450 12 Vdc compressor or equivalent
  • Pull: OUT port is vented to atmosphere

Port Size:

  • NPTF 1/8″ -27
  • 1/4″ blade connections

Specification, Diagram

Norgren combination seat valve electric - pneumatic

Additional information

Weight 1 lbs
