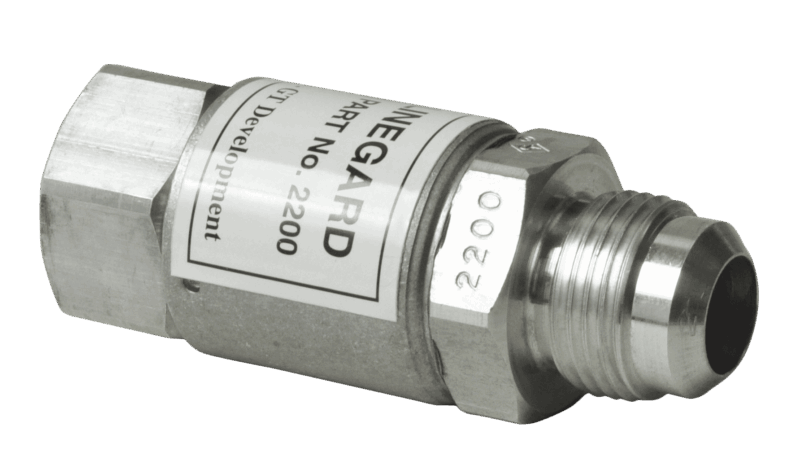

Linegard® Breakaway Valve
$74.99
Norgren Linegard® Breakaway Valve. 7/8″-14 Port Size and NPT Thread Type.
Ships Free
Out of stock
Description
Norgren Linegard® Breakaway Valve. Valves break apart upon impact to protect crossover lines and fuel tank. 7/8″-14 Port Size and NPT Thread Type.
- The valves separate in the event of an impact and seal off both the fuel tanks and bottom crossover lines
- Prevents loss of fuel while leaving the system intact
- Available in different mounting configurations for various applications
- Valve shall flow less than 4.0 GPM of diesel fuel #2 at 70oF (21oC) at a different pressure of 1psi
Specifications:
Technical Data Operation temperature: -40°F to 185°F (-40°C to 85°C)
Port size: Male end: 7/8″-14 NPT Female end: 7/8″-14 NPT
Other Norgren valves:
https://hqtruckparts.com/product/norgren-pressure-protection-valve-223-series/
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 3 × 3 × 3 in |
| Port Size | 7/8"-14 |
| Thread Type | NPT |
