Description

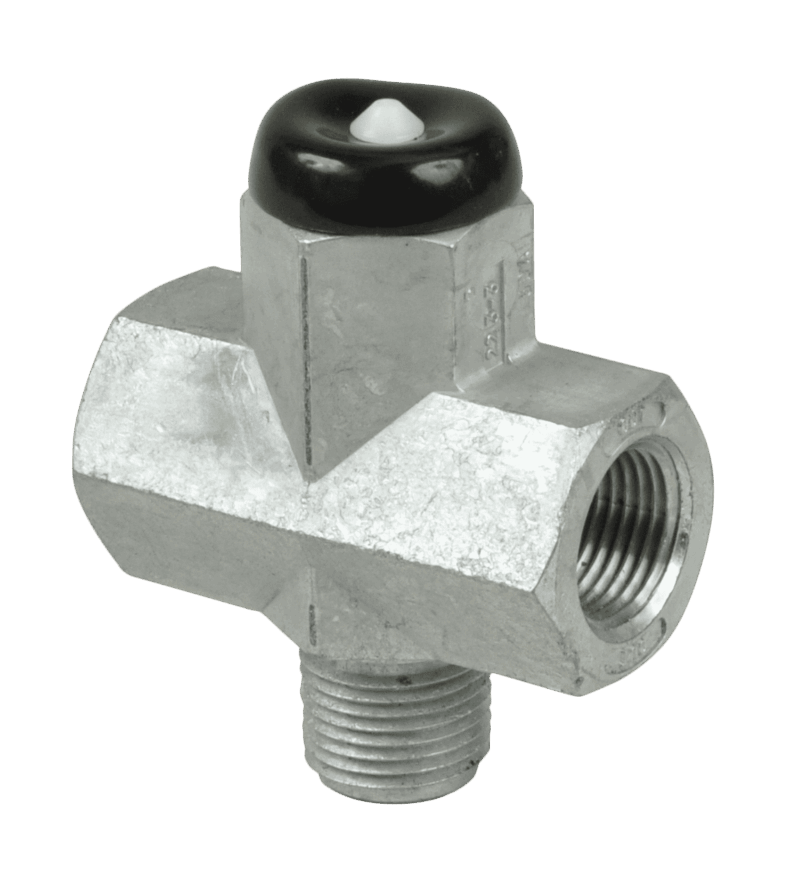

Norgren Pressure Protection Valve 223 Series
The Norgren Pressure Protection Valve (PPV) 223 Series valves are designed to enhance vehicle performance, our valves meet the highest engineering standards for air suspension pressure, flow control and leakage protection. Our valves are available in a variety of types and configurations and comply with federal safety regulations.
Pressure Protection Valve (PPV) 223 Series
- Designed to isolate vehicle air systems in case of leakage
- Protects the integrity of the air supply
- Convenient in tank mounting
- Variety of closing pressure options to suit application
Technical Data
- Operating pressure:
- 0 to 150 psi 0 to 10 bar
- Operating temperature:
- -40°F to +200°F max. -40°C to +93°C max.
Most common models are: 223-365 and 223-585. You can see these in the list below and these are available to order online at our HQ store. The other sizes are also available but contacting the office by email or phone will yield the quickest delivery; office number 248-689-7373, email sales@hqtruckparts.com.

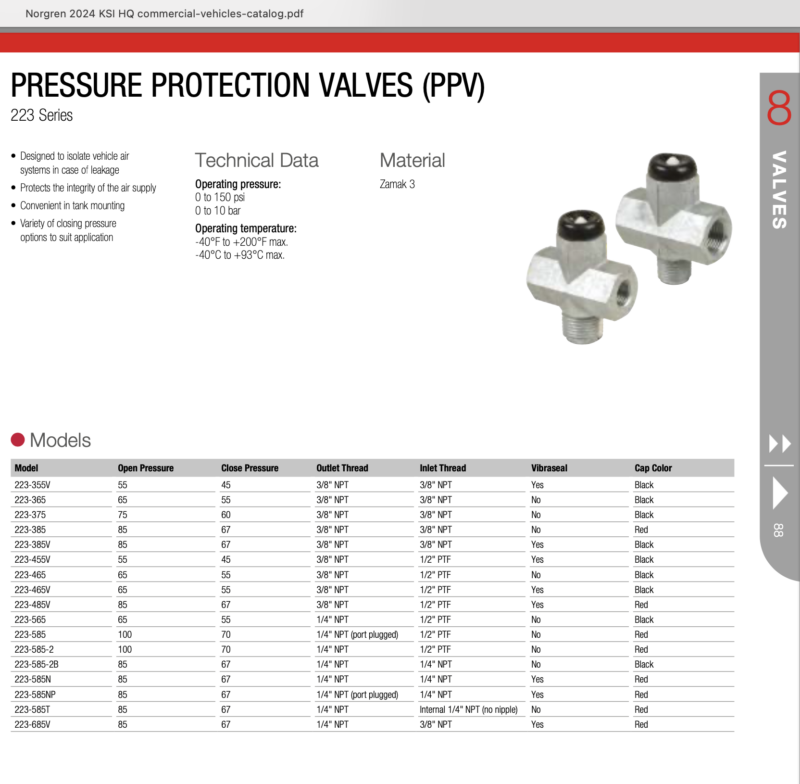

Available Models:
