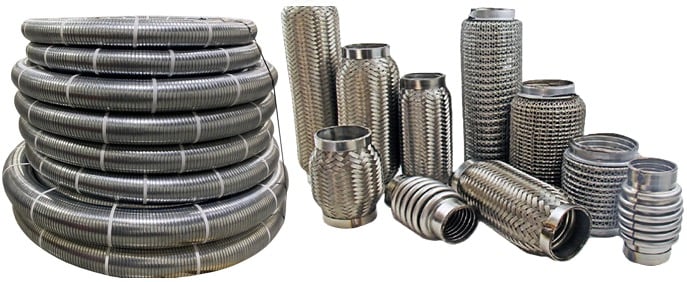

Comparison of Exhaust Flex Pipe Types

Comparing Flexible pipe types by viewing their images and considering the qualities of the pipe is the easiest presentation. Our perspective is the use of pipe for exhaust systems that absorb engine vibrations and thermal expansion. They come in various constructions to suit different conditions and industries. Below we compare key types of exhaust flex pipes – including solid steel (galvanized vs. stainless), mesh braided, bellows, interlocked, PTFE-lined, and corrugated metal hose. We detail their construction, common uses, pros/cons, operating ranges, standards, and leading brands.

There’s a handy chart matching the most common use cases and type of flex.

Contents:

• Interlock Flex Pipe (Galvanized or Stainless Steel)
• Mesh Braided Flex Pipes
• Bellows Flex Pipes (Accordion Expansion Joints)
• PTFE-Lined Flex Pipes
• Corrugated Metal Flex Pipes
• Table of Flex Pipe Types by Industry Use
• What to Buy

Interlock Flex Pipes (Galvanized or Stainless Steel)

• Construction & Materials: Made from a continuous profiled metal strip about 1.5″ wide that is fully interlocked as it is wound into a pipe. This creates a flexible metal pipe with overlapping, interlocking sections – essentially a strip-wound pipe that resists pulling apart. Interlock flex pipe is made unlined (rough bore) or with a smooth inner liner strip to reduce internal roughness. Galvanized or 304 stainless steel provide the best result for high-temperature use. Galvanized steel is used for low-cost applications. While SS304 has the toughest reputation for temp and long lasting. Sometimes inside a braided flex application interlock is used. The smoother interior prevents turbulence and carbon buildup aceraceparts.com. As a standalone exhaust flex pipe, interlocked pipe usually has no external braid. It relys on the interlocking structure for strength that resists damage from most uses including crushing.
• Typical Uses & Industries: Used in heavy-duty exhaust systems (trucks, semi’s, buses, agriculture, construction equipment). Especially for pre-turbo or high-temperature sections when combined with bellows. Many heavy truck OEM flex joints are a composite: bellows + interlock liner + outer braid for maximum durability ebay.com. Standalone interlocked flex tubing is also found in diesel particulate filter connections, generator exhaust. It acts as a protective armor over hose lines or wiring kuriyama.com. Additionally, interlock pipe are popular for dry bulk tankers and industrial machinery exhaust. These uses require very high flexibility without concern for 100% leak tightness jwroberts.com, kuriyama.com. In racing, interlock liners are preferred inside flex sections to avoid flow restriction aceraceparts.com. They are even used outside the automotive realm as protective conduits for cables.
• Pros: Highly flexible – the interlocking design can bend tighter than a rigid corrugated tube jwroberts.com. Very robust mechanically: it resists kinking and can tolerate vibration and movement without fraying (since there’s no braid). Excellent heat resistance (stainless interlock strips endure up to ~816 °C) kuriyama.com. When used as an inner liner, it provides a smooth interior that maintains exhaust flow with minimal diameter reduction aceraceparts.com. Interlocked pipe can also stretch or compress a bit, aiding installation.
• Cons: By itself, an interlocked hose is not gas-tight – there are small gaps in the interlocks. It may leak fumes (acceptable for many exhaust setups not near a cab) kuriyama.com. It also has low pressure capacity (usually not suitable for pressure beyond ~1–2 bar without reinforcement). The interlock joints can seize or get packed with soot over time if used in corrosive environments. Lastly, standalone interlock flex pipes tend to be heavy and not as elastic as bellows for axial compression.
• Operating Range: Temperature: Stainless interlock is the highest temp tolerant flex pipe, up to ~1500 °F (816 °C) kuriyama.com. This makes it suitable for the toughest conditions and contributes to its long lasting quality. Pressure: Minimal – essentially for exhaust at near atmospheric pressure. (They are often used in vacuum/suction applications or as expansion joints, not for containing high pressure kuriyama.com.) If packing (like fiberglass) is inserted, it can be made more gas-tight but still not for high pressure.
• Standards & Compliance: Interlocked metal pipe/hose falls under general hose standards like ISO 15465. In practice, heavy-truck interlock flex pipe sections are built to OEM specs and tested for durability. For instance, a truck’s DPF flex with interlock liner must survive vibration and thermal cycles without cracking. Industrial interlock hoses may follow NAHAD fabrication guidelines. There are no specific SAE or DOT standards solely for interlocked exhaust pipe. Interlock usage is indirectly governed by the need to comply with emissions and safety.
• Leading Brands/Manufacturers: Tru-Flex (a leader in interlock strip-wound hoses for exhaust tru-flex.com). Hose Master makes strip-wound and “floppy guard” interlocked hoses for many industries. Many flex coupling brands (like Ace Race Parts or Vibrant) source interlock liners for their products. For heavy equipment, OEM suppliers like Tenneco or Cummins include interlock-lined flex sections in their exhaust assemblies. And, look to HQTruckParts who has been manufacturing this pipe in Troy Mi since 1956.

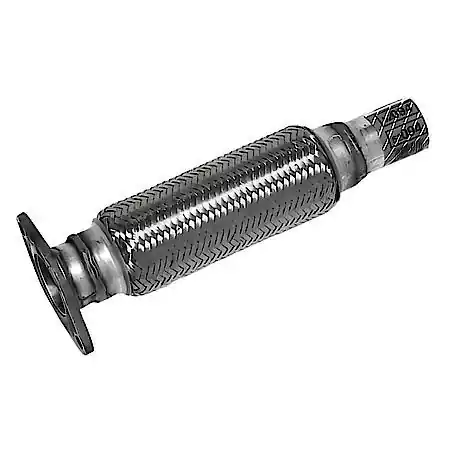

Mesh Braided Flex Pipes

• Construction & Materials: Typically a single or double-layer stainless steel braid on the outside, with a corrugated stainless steel inner bellows inside aceraceparts.com. Some designs include an inner liner for smooth flow – either a spiral interlock or an inner braid sleeve aceraceparts.com. Lower-cost aftermarket parts often use 409 stainless for the bellows or end caps. Whereas higher-quality units use all 304 stainless for braid, bellows, and end connections aceraceparts.com. Wall thickness of the bellows is thin (often single-ply for flexibility), and braid wire is usually fine 304 SS strands.
• Typical Uses & Industries: Ubiquitous in automotive exhaust systems – placed after the exhaust manifold or downpipe in cars triscan.dk. Also used in high-performance/racing cars for mid-pipe flex sections (though racers may opt for upgraded versions with liners). Braided flex sections are used in some Heavy Duty aftermarket or OEM downpipes and DPF connections. Often with multiple braids or internal liners for strength). They see some use in marine (dry) exhaust for smaller vessels or gensets, and in stationary gensets or industrial engines. Overall, mesh braided flex pipes are the go-to for most standard automotive applications.
• Pros: Flexible and vibration-dampening, protecting the exhaust system and components from engine movementbendbrothers.us. Easy to weld in or clamp. The outer braid adds strength and prevents the bellows from over-extension, while also providing some abrasion protection. All-stainless versions have good corrosion resistance. They are relatively compact and inexpensive in mass production.
• Cons: The braid can fail over time from heat and exhaust gases. – The braid can become brittle or unravel, this makes this more expensive option less desirable where interlock can be substituted. especially if lower-grade stainless is used bendbrothers.us. Once the braid deteriorates, the inner flex tube can balloon or crackbendbrothers.us. Lower-quality flex pipes often use 409 SS which corrodes faster in road salt and heatbendbrothers.us. They are not designed for extreme high-temp locations (e.g. not recommended before a turbocharger), as inner braid or interlock liners can degrade and potentially break off into the turboaceraceparts.com. Additionally, a braided flex without a smooth liner can introduce some exhaust flow turbulence or slight power loss (minor for most street uses).
• Operating Range: Temperature: Generally safe up to ~650–800 °C (1200–1470 °F) for continuous operation, typical of downstream exhaust locationstriscan.dk. At the manifold (higher ~800°C), heavy-duty versions with three-layer (inner interlock + bellows + braid) are usedtriscan.dk. Pressure: Designed for atmospheric exhaust pressure. With an intact braid, they can withstand pulsating exhaust pressures, but are not pressure-rated for fluid conveyance.
• Standards & Compliance: Many OEM braided flex couplings meet SAE and EPA durability requirements for passenger vehicles (e.g. enduring 5+ years/100k miles). Aftermarket parts may not adhere to specific standards, but reputable brands use SS304 and test for leak-tightness. In Europe, OEM flex parts must endure corrosive salt tests and thermal cycles (some OEMs even use Inconel 625 liners to meet severe fatigue/corrosion demands sae.org). No explicit DOT rule targets exhaust flex pipes, but any replacement must not compromise emissions or safety (meaning it should be of comparable quality to OEM).
• Leading Brands/Manufacturers: Vibrant Performance and Ace Race Parts (for performance stainless flex couplers with braid) aceraceparts.com, Walker Exhaust (makers of OEM-style flex repair sections), AP Exhaust, Nelson Global/Tru-Flex (OEM heavy-truck braided flex), and Flextech. Many global manufacturers (India, China) produce braided flex pipes for the aftermarket, so quality varies.

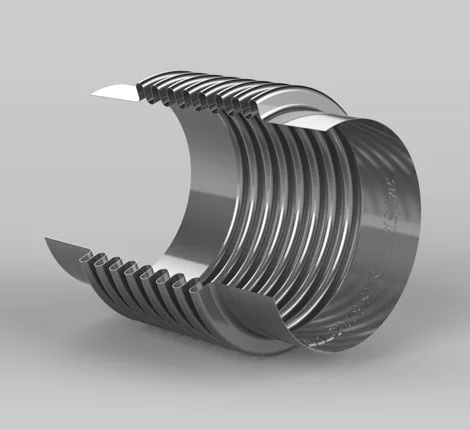

Bellows Flex Pipes (Accordion Expansion Joints)

• Leading Brands/Manufacturers: Tru-Flex/Nelson (OEM heavy-truck bellows), Senior Flexonics and Eberspächer (automotive OEM suppliers), Bellows Systems, Hose Master (industrial expansion joints), and specialty racing suppliers (e.g. Vibrant Power makes pre-turbo bellows with liners). Companies like DBA Silencing produce aftermarket mining truck bellows (multi-ply stainless) known for longevity dbasilencing.ca. Image from US Bellows.

• Construction & Materials: A convoluted metal bellows made by forming thin-wall stainless steel into accordion folds bendbrothers.us. Often constructed in multiple plies (e.g. two or three layers of thin 321 or 304 stainless) to improve strength and fatigue lifedbasilencing.ca. End fittings can be weld-on pipes or flanges. High-performance bellows may include an internal liner (sleeve) – either a solid tube or interlock – to provide a smooth flow path and protect the bellows from hot gas erosion bendbrothers.us. Some bellows have external covers or braid, but many are “bare” in exhaust use.

• Typical Uses & Industries: Found in heavy-duty diesel trucks (between engine and exhaust piping or after treatment systems) as OEM expansion joints. Used on industrial engines, generators, construction and mining equipment to handle large engine movement. Common in racing and high-performance turbo applications – e.g. in turbo manifold “up-pipes” or downpipes – where a bellows with a solid liner is preferred to withstand extreme heat and pressurebendbrothers.usbendbrothers.us. In marine, large ship engines use stainless bellows expansion joints in exhaust stacks, and smaller boats may use bellows between the engine and muffler. They are also used in power generation and oil/gas installations for exhaust expansion joints.

• Pros: Very durable under heat and pressure. Multi-ply stainless bellows can survive high temperatures and repeated thermal cycles with minimal fatiguedbasilencing.ca. They provide excellent vibration isolation and can accommodate significant thermal expansion of long exhaust pipingdbasilencing.ca. Solid or multi-layer liners can handle high exhaust flow without restriction (the liner prevents flow turbulence in the convolutions). Quality bellows last a long time – aftermarket mining truck bellows often outlast OEM parts by yearsdbasilencing.ca. They also protect turbos in racing by not shedding braid strands (since typically no braid).

• Cons: More expensive than simple braided flex or strip-wound flex, due to complex fabrication and materials. Slightly stiffer in flexibility (especially if a solid inner liner is used, which reduces the effective inner diameter)bendbrothers.us. If not properly installed or aligned, bellows can suffer from stress and crack. They are usually larger in diameter and length for a given pipe size, which can be a packaging challenge in tight spaces. Without an outer braid, they are exposed – can be damaged by road debris or over-extension (though some designs include limit rings).

• Operating Range: Temperature: Excellent high-temp capability – 800+ °C continuous is feasible with stainless steel bellows (321 SS or Inconel versions can go even higher). Bellows are used in pre-turbo positions (which can see 900–1050 °C in racing) when made from suitable alloys and with linersaceraceparts.com. Pressure: Can withstand moderate exhaust backpressure. Many multi-ply bellows for diesel engines handle a few bar of pressure easily. (In industrial specs, unbraided bellows might handle ~50–150 psi depending on size/design, and much more if an external restraint or braid is added.)

• Standards & Compliance: Often built to EJMA (Expansion Joint Manufacturers Association) guidelines for design and cycle life in industrial applications. For on-road trucks, bellows must meet OEM durability tests (thermal cycling, vibration, etc.). Material grades must handle corrosion (road salt) and heat – e.g. some OEM bellows use Inconel 625 or 321 SS to resist high-temp corrosionsae.orgsae.org. In marine, classification societies (ABS, Lloyd’s) may require inspection of metal bellows in exhaust systems. There are also ISO standards (like ISO 10380) covering flexible metallic hoses and expansion joints which top manufacturers comply with.

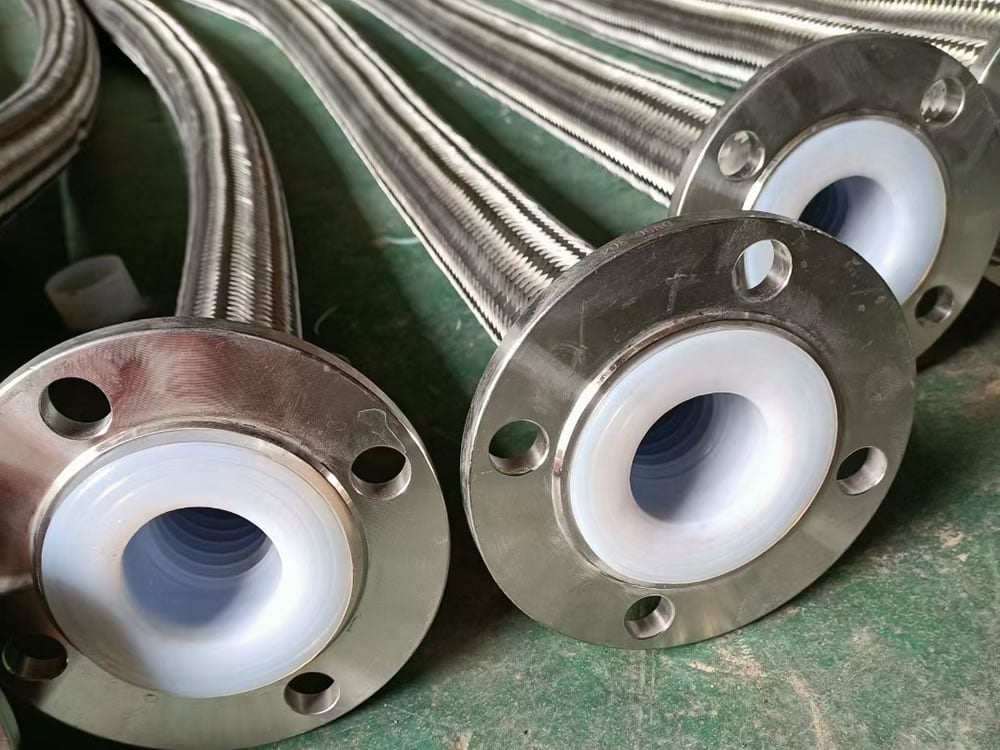

PTFE-Lined Flex Pipes

• Construction & Materials: A typical PTFE-lined flex hose has a thin PTFE tube on the inside, often smooth-bore or convoluted PTFE, which is then reinforced externally by a corrugated metal hose or braided stainless steel cover for pressure containment andronaco. commcgillhose.com. The metal part is usually stainless steel, and the PTFE might be static-dissipative (with carbon) if used around combustible gases. Some designs are actually expansion joints that combine a metal bellows with a PTFE liner bonded to it (e.g. Tefbellows expansion joints for chemical plants) flexicraft.com. These hybrid bellows can handle moderate pressure and impart both flexibility and corrosion resistance up to a point.
• Typical Uses & Industries: Chemical processing exhaust or vent lines – for instance, venting aggressive acids or solvents where the exhaust gas would corrode metal. They see use in industrial fume handling, laboratory exhaust systems, and sometimes in EGR (Exhaust Gas Recirculation) lines on engines that run very cool, where acid condensation is a concern. You might find PTFE-lined flex joints in pharmaceutical or food industry exhaust/vent applications, since PTFE won’t contaminate and is easy to clean. In general, this type is not used in high-temperature engine exhaust, but rather in lower-temperature, high-corrosion scenarios. (For example, a factory exhaust scrubbing system might use PTFE-lined flex connectors for chemical resistance).
• Pros: Extreme chemical resistance – PTFE is nearly inert to all chemicals, so these flex hoses can handle acidic or caustic exhaust that would eat through metal andronaco.com. The smooth PTFE bore prevents buildup of deposits and makes for low-friction flow. They also offer good flexibility, and the PTFE can reduce noise/vibration transmission (as it dampens high-frequency vibrations). If used within its temp range, PTFE liners significantly increase the hose’s lifespan in corrosive service and ensure a clean, non-reactive gas path.
• Cons: Temperature limitation: PTFE degrades above roughly 260 °C (500 °F) cranecpe.com, so these hoses are unsuitable for typical engine exhaust temperatures. They are generally limited to cooler sections or processes. PTFE-lined assemblies are more expensive due to the composite construction and materials. They also tend to have slightly larger bend radii (PTFE can kink if bent too tightly without support). Additionally, at high temperatures PTFE will creep, so the hose can lose shape if misused. In terms of pressure, the PTFE liner isn’t load-bearing; the metal braid carries the pressure, and if the braid fails, the PTFE can burst.
• Operating Range: Temperature: Typically rated up to 232–260 °C (450–500 °F) continuously cranecpe.com. Some special PTFE blends or PFA liners can go to ~280 °C, but that’s the upper limit. Pressure: With a stainless braid, these hoses can handle high pressures (often several hundred psi depending on diameter), since they are often adaptations of chemical transfer hoses. However, in exhaust applications pressure is usually low – the main purpose is chemical compatibility, not pressure.
• Standards & Compliance: Often manufactured to meet chemical hose standards (e.g. SAE J1737 for PTFE fuel hoses, or FDA compliance for food-grade). Industrial versions might adhere to ASTM F1545 (for PTFE-lined pipes) or ISO 14692. If used in emissions testing or specialized exhaust, they’d need to maintain seal and not off-gas. No automotive standard specifically addresses PTFE exhaust hoses; their use is niche and typically engineer-specified. For marine or industrial use, they must often pass fire resistance tests if there’s any chance of fire (since PTFE, while having a high ignition point, will burn in flame).
• Leading Brands/Manufacturers: Swagelok and Parker manufacture PTFE-lined stainless flex hoses for industrial use products.swagelok.com. Aflex Hose (Watson-Marlow) offers PTFE-lined flexible hoses for pharmaceuticals wmfts.com. In expansion joints, Flexicraft’s Tefbellows is a known product line flexicraft.com. These aren’t typically sold by automotive exhaust brands, as they cater more to chemical and industrial markets.

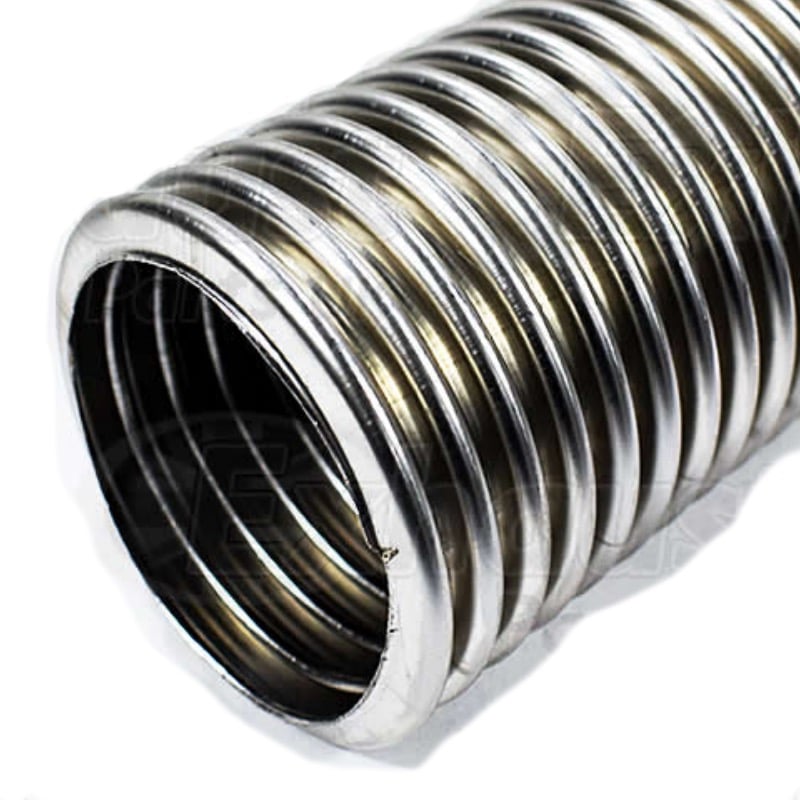

Corrugated Metal Hose Flex Pipes

• Leading Brands/Manufacturers: Penflex, Hose Master, and OmegaFlex are big names in industrial corrugated metal hoses. Aeroquip and Parker also offer lines of these hoses for various industries. In the context of exhaust or engines, companies like Flexider have supplied corrugated flexible sections. Many custom fabrication shops will assemble corrugated SS hose with required end fittings for specialty exhaust needs. The image here is from exhaustUK.

• Construction & Materials: A seam-welded stainless steel tube with annular (ringed) corrugations along its lengthkuriyama.com. The corrugations give it flexibility. Typically made of 304 or 316 stainless steel (or higher alloys for extreme conditions). For pressure containment, one or two layers of wire braid (stainless mesh) are installed over the corrugated corekuriyama.com. This combination allows the hose to flex while holding internal pressure. These hoses often have welded-on end fittings (flanges, NPT nipples, etc.) for installation.

• Typical Uses & Industries: Widely used in industries like oil & gas, chemical processing, power generation– anywhere a flexible connection is needed for steam, gas, fuel, etc., under pressurejwroberts.comjwroberts.com. In the exhaust realm, corrugated metal hoses might be found in generator or turbine exhausts, where the hose handles hot gases and maybe some pressure. They’re also used for engine turbocharger oil drain lines or EGR coolant lines (not exhaust gas, but engine-related fluids). In vehicles, they are less common as primary exhaust flex joints (braided flex or bellows are used instead), but you may see them in custom or racing setups where an extremely robust, pressure-rated flex is needed (for example, connecting a wastegate pipe). Additionally, some marine exhaust systems (especially wet/dry separators) use short corrugated metal hose sections because of their durability in high heat and saline environment.

• Pros: High pressure capability: With braids, corrugated hoses can handle very high pressures (often up to 3000+ psi in smaller diameters)kuriyama.com, far beyond any exhaust backpressure. They are leak-tight by design (the continuous metal tube ensures no gaps)jwroberts.com. They offer good corrosion resistance when made of proper alloys, surviving harsh chemicals or salt exposurejwroberts.com. Also, they can accommodate significant movement and vibration while maintaining pressure integrity, making them ideal for critical systems. In short, they provide a combination of strength and flexibility that other flex types might notjwroberts.comjwroberts.com.

• Cons: Corrugated metal hoses are generally stiffer than interlock or bellows in bending (especially with multiple braids)jwroberts.com. They are also more expensive and usually custom-fabricated for length and fittings. In exhaust use, the braided exterior can transfer heat quickly (these hoses aren’t usually insulated), so they can be very hot to the touch. If subjected to constant vibration without proper length, they can fatigue crack at the welds or near the ends. Additionally, their weight is higher per foot due to the heavy braid and thick wall needed for high pressure. For purely atmospheric exhaust needs, corrugated hoses might be over-engineered (you pay for pressure capability you don’t need).

• Operating Range: Temperature: Excellent – standard stainless corrugated hoses operate from cryogenic up to ~600 °C continuously; special alloys (Inconel, Hastelloy) push this to ~1000 °C. In practice, 304 SS corrugated hose is good for ~800 °F (425 °C) continuous, 316 SS a bit higher, before material properties start to reduce (though short-term peaks of 1200°F+ are tolerated). Pressure: Depends on size and braid layers – small bore hoses can exceed 3000 psi, larger diameters have lower ratings (hundreds of psi). For exhaust (near atmospheric pressure), any standard corrugated hose with one braid will easily handle it.

• Standards & Compliance: These hoses are often built to ISO 10380 (standard for corrugated flexible metallic hoses) which covers pressure, impulse, and bend radius requirements. They are also tested per NAHAD hose safety standards (100% leak tested before shippingkuriyama.com). In certain industries, they must meet fire-safestandards (API 576) to ensure they won’t fail in a fire. If used in marine applications, they might need certification for use in engine rooms. For vehicular use, there’s no specific regulation, but using a corrugated hose in a highway truck would need to meet the same durability as any exhaust component.

Table of Flex Pipe Types by Industry Use

Flex Pipe type	Manufacturer	Semi-Truck	Heavy Duty	Marine Exhaust	Auto Passenger	Mining	Agriculture Heavy Equip	Racing Performance
Interlock	hqtruckparts.com	Yes	Yes	Sometimes	Common	Common	Heavy Machinery	No
Mesh Braid	Walker Exhaust	Sometimes	Sometimes	Small Craft	Rarely	No	No	Rarely
Bellows	Tru-Flex, Flexonics	Must be treated	Yes	R	Rarely	Yes	Yes	Turbo App
PTFE Lined	Swagelok, Flexicraft	No	No	Chemical app	No	Chemical app	No	No
Corrugated	Hose Master, Penflex,	Rarely	Genset, Turbo	Yes	Rarely	Yes	Stationary systems	Custom builds

Your Circumstances Will Dictate Who You Buy From

Every exhaust system is different — so what works for one rig or repair might not be right for another. That’s why we believe it’s important to lay out the facts, define your options, and let your use case and conditions guide your choice.

We’ll continue to dive deeper into the details in future posts — breaking down flex pipe sizing, common installation challenges, DOT considerations, and more. Our mission is simple: help buyers become better buyers by sharing what we’ve learned in the business since 1956.

We don’t claim to be the best at everything. But we know exhaust — and we know how to help you avoid the mistakes that cost time, money, and performance.

---

So… When Does HQ Flex Shine?

If you’re working with heavy-duty trucks, semi truck & trailers, agriculture, marine, mining equipment, or other tough environments —

and you need:

• Real steel, not mesh
• Custom length without the hassle of cutting
• USA-manufactured
• Free Shipping
• Pricing that’s less per foot because you buy direct
• A great staff available to help

Then HQ Flexatube™ is for you.

We’ll also be highlighting our favorite diesel mechanics, installers, and industry insiders in upcoming content — so check back soon for shop-tested tips, video demos, and more no-BS guidance from the field.
